HiFiMAN EF1000 Hybrid Tube Headphone Amplifier (Wired)

Effortless, tube‑kissed power for the world’s most demanding headphones

If you’ve ever loved a reference planar like HIFIMAN’s SUSVARA but wrestled to unlock its full dynamics, you already know the pain: under‑powered amps, compressed crescendos, and fatiguing treble when you push the volume. The EF1000 ends that compromise. Its hybrid architecture marries a vacuum‑tube input stage to a high‑current solid‑state output, delivering pure Class‑A authority to headphones and real speaker outputs—so music breathes with ease, color, and control, even on notoriously hard‑to‑drive planars.

---

Why Audiophiles Choose This Amplifier

• • Sound quality: Effortless headroom with a natural, slightly tube‑sweetened presentation that keeps transients crisp, bass textured, and staging expansive—especially with power‑hungry planars. Community owners pairing EF1000 with SUSVARA consistently describe bigger soundstage, deeper bass, and superb separation at realistic levels.
• • Engineering: A true hybrid. The EF1000 uses a vacuum‑tube SRPP input stage feeding a discrete solid‑state output. Six 6922 tubes and six parallel transistor pairs are supported by a relay‑based, reference‑grade attenuator derived from HIFIMAN’s SHANGRI‑LA flagship—designed for ultra‑low distortion and precision channel tracking.

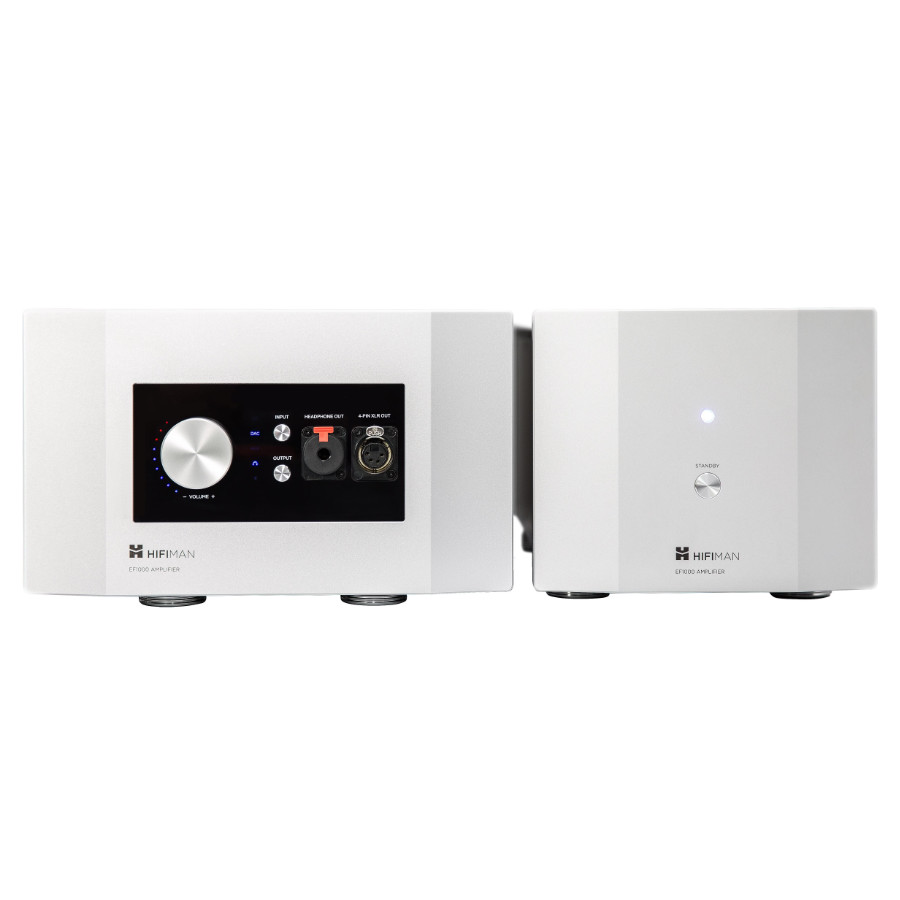

• • Practicality: It’s two amplifiers in one. Drive headphones from the front panel (4‑pin XLR or 6.35 mm) or connect speakers via rear binding posts. An external, heavy‑duty power supply keeps noise out of the signal path. A robust chassis, auto‑locking headphone jacks with release buttons, and an included remote make daily use easy.

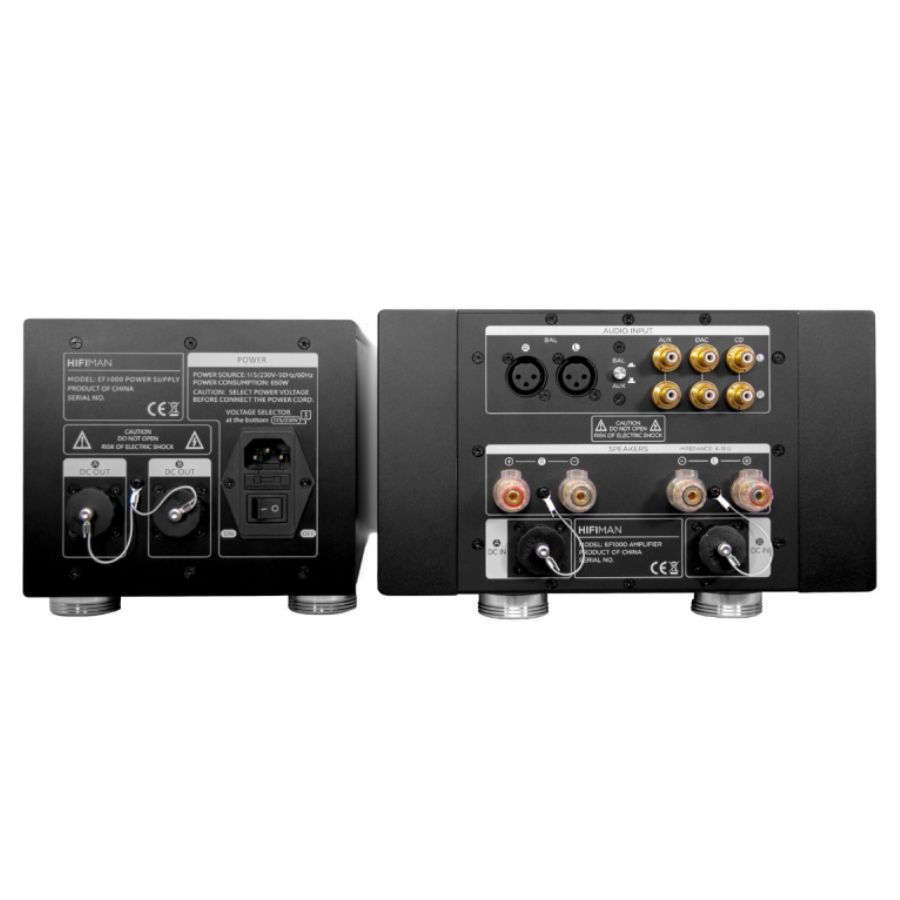

• • Compatibility: Three single‑ended RCA inputs (labeled CD, DAC, AUX) and one balanced XLR input let you integrate the EF1000 into existing rigs without changing sources. Optimized for difficult planars yet equally at home with dynamic headphones and moderate‑sensitivity speakers.
• • Uniqueness: Where many “statement” headphone amps stop at cans, EF1000 adds serious speaker drive—50 W/ch pure Class‑A into 8 Ω or 110 W/ch in Class‑A/B—while maintaining a refined, tube‑informed character. It’s a rare all‑analogue solution that behaves like a reference head‑amp and an integrated power amp in one.

Note: This description covers the EF1000 amplifier. HIFIMAN also offers an EF1000DAC variant with integrated digital inputs; specifications and features differ.

---

What’s Included

• • Main Product: HiFiMAN EF1000 Hybrid Tube Headphone & Speaker Amplifier (main unit) with separate external power supply; relay‑based stepped attenuator; SRPP tube input stage.
• • Primary Accessory: External power supply unit with dedicated multi‑pin DC umbilicals (7‑pin and 12‑pin).
• • Secondary Items: IR remote control.
• • Documentation: EF1000 Owner’s Guide; warranty information. (Owner’s Guide release: February 19, 2025.)

---

Technical Specifications

Specification	Value	Notes
Product Type	Wired analogue headphone/speaker amplifier	RCA and XLR inputs; no built‑in DAC or wireless.
Architecture	Hybrid: vacuum‑tube SRPP input + solid‑state output	Six 6922 tubes; separate, isolated power supply design.
Headphone Output Power	20 W/ch into 35 Ω (pure Class‑A)	Headroom for low‑sensitivity planars at realistic levels.
Speaker Output Power	50 W/ch into 8 Ω (pure Class‑A); 110 W/ch into 8 Ω (Class‑A/B)	Drives moderate‑sensitivity speakers cleanly.
Signal‑to‑Noise Ratio	108 dB (A‑weighted)	Low noise floor complements ultra‑resolving headphones.
Dynamic Range	111 dB	Preserves microdynamics and space.
THD	0.15%	Hybrid design balances tube warmth and control.
Volume Control	Relay‑based stepped attenuator	Flagship‑grade precision; excellent channel balance.
Headphone Outputs	4‑pin XLR balanced; 6.35 mm single‑ended	Auto‑locking jacks with release buttons.
Inputs	1× XLR balanced; 3× RCA (CD/DAC/AUX)	Front‑panel input selector and rear Balanced/AUX switch.
Speaker Terminals	L/R binding posts	Select headphone or speaker output from front panel/remote.
Dimensions (Main Unit)	460 × 280 × 170 mm	Substantial heat‑sinking; allow ventilation.
Dimensions (Power Supply)	360 × 200 × 170 mm	Separate chassis for noise isolation.
Weight	Main: 13,450 g; PSU: 11,200 g	Heavy, furniture‑grade placement recommended.

Safety/placement note: HIFIMAN recommends at least 30 cm (12") of clearance for ventilation and cautions that surfaces can run hot during operation.

---

Professional Recognition

• • Reviews and community reception: On Head‑Fi, owners driving SUSVARA report “big sound stage,” “phenomenal clarity,” and “deep bass” with EF1000, while also noting that the chassis runs very hot—plan placement accordingly. Others prefer alternative high‑end amps; as always, synergy and taste matter.
• • Heritage: HIFIMAN’s top systems (SUSVARA/SHANGRI‑LA) set the brand’s reference target for transparency and dynamics; EF1000 draws on that lineage with its relay‑attenuator and high‑current design.
• • Innovation: A rare, no‑compromise, dual‑purpose amplifier for both headphones and speakers; separate external power supply; auto‑locking headphone connectors; and a hybrid topology designed to combine tube naturalism with solid‑state grip.

---

The Bottom Line

The HiFiMAN EF1000 is built for the listener who refuses to choose between tonal beauty and limitless drive. Its tube‑fed, Class‑A muscle finally lets statement planars open up without strain, while its speaker outputs add welcome flexibility for nearfields or a second system. Backed by a recent, detailed owner’s guide and real‑world reports from SUSVARA owners, EF1000 is a confident anchor for a reference‑grade, all‑analogue rig—one that pairs real power with refinement. If your headphones have more to give, this is the amp that asks them to deliver.

---

Notes for buyers:

• This is the amplifier‑only EF1000. If you need integrated digital inputs and Bluetooth, HIFIMAN’s EF1000DAC is a different product with distinct specifications.

Compatibility quick check:

• Inputs: 1× XLR balanced; 3× RCA single‑ended
• Outputs: 4‑pin XLR and 6.35 mm headphone; L/R speaker posts
• Ideal matches: Low‑sensitivity planars (e.g., SUSVARA), resolving dynamics, and moderate‑sensitivity speakers.

Research sources: Official EF1000 Owner’s Guide (release Feb 19, 2025), HIFIMAN product listing, and dealer documentation were used to verify specifications; community feedback was consulted to reflect real‑world performance and ergonomics.
