Sennheiser HDV 820 Headphones Amplifier

Hear your reference headphones at their full potential

When you settle in for a focused session, you don’t want to wonder whether your DAC, amp, or cabling is holding you back. You want silence between notes, lifelike dynamics when the music swells, and the kind of spatial layering that lets you “see” into a mix. Sennheiser’s HDV 820 is built precisely for that moment: a purpose‑engineered, fully balanced desktop headphone amplifier with an integrated ESS SABRE32 DAC, designed to remove friction between you and your music and to pair seamlessly with reference dynamics like the HD 800 S. It’s clean, powerful, and elegantly simple to use—so the only thing you notice is the performance.

---

Why Audiophiles Choose This Product

• Primary Benefit: Effortless, refined sound with wide dynamics and low distortion, revealing microdetail without fatigue—an ideal partner for high‑end Sennheiser headphones.
• Technical Benefit: ESS SABRE32 conversion (up to 32‑bit/384 kHz PCM and DSD256) feeds a fully balanced analog stage for vanishingly low THD (<0.001%) and >115 dB dynamic range.

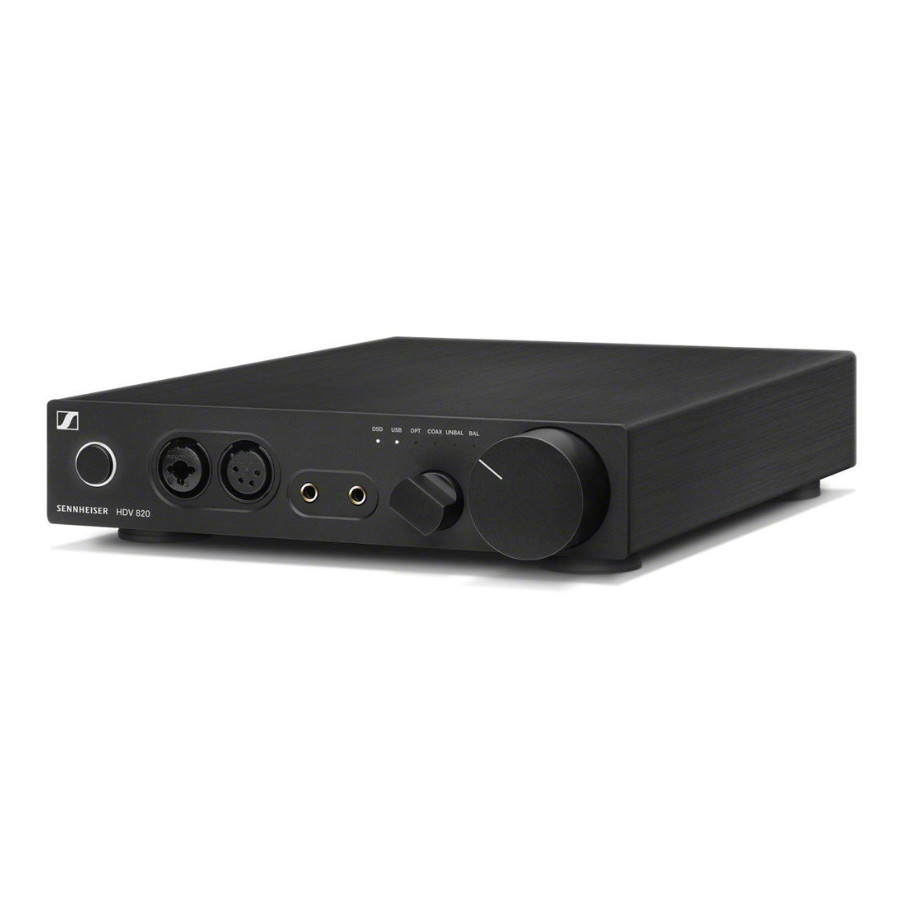

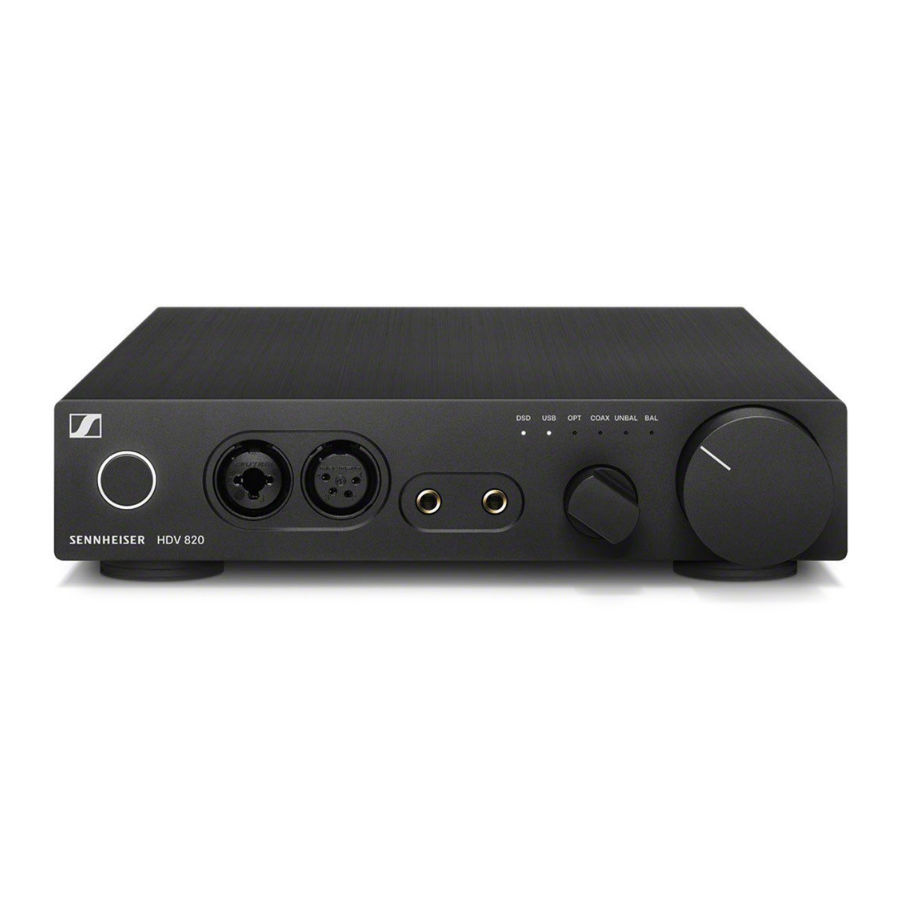

• Practical Benefit: Four front‑panel headphone outputs—4‑pin XLR, dual 4.4 mm Pentaconn balanced, and a combo 6.35 mm/XLR‑3 jack—plus balanced pre‑outs to feed active monitors or a power amp.

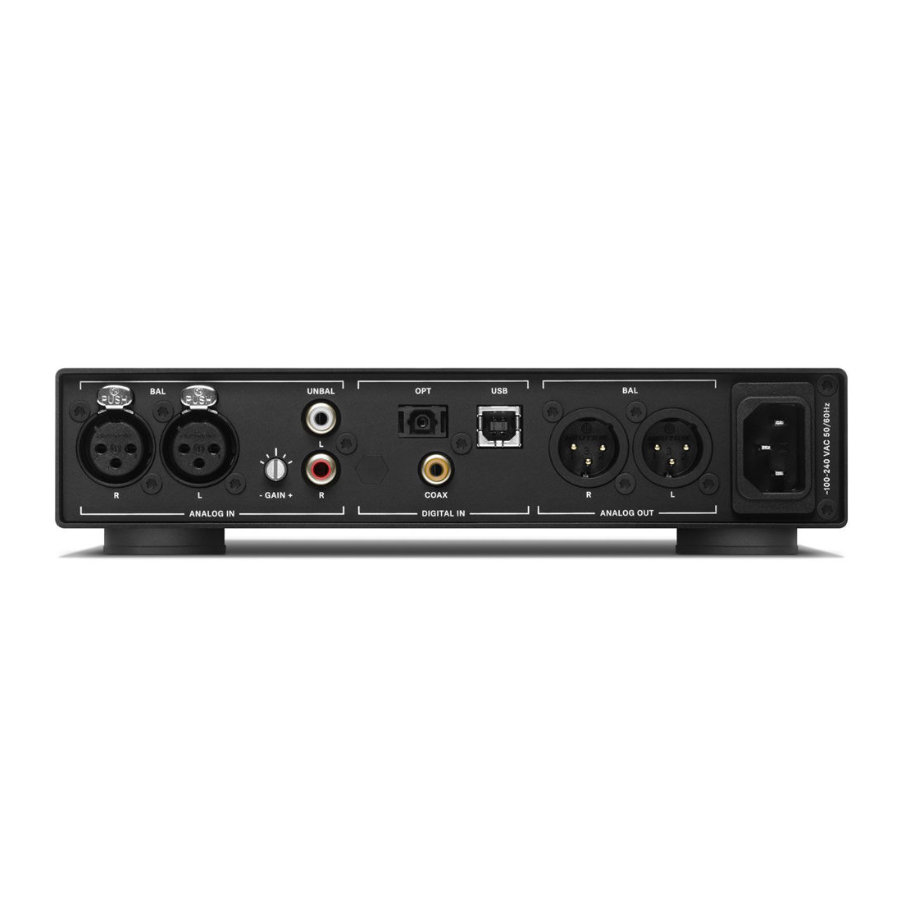

• Compatibility Benefit: Connect virtually any source via USB, optical, or coaxial digital—or run your own DAC into the balanced XLR or RCA inputs. macOS is driverless; a Windows driver is included.
• Unique Benefit: Twin 4.4 mm Pentaconn balanced jacks (JEITA standard) offer a low‑resistance, distortion‑minimizing connection and make dual‑listening or A/B headphone testing simple.

---

What’s Included

• Main Product: Sennheiser HDV 820 digital headphone amplifier/DAC, anodized black finish (Article no. 507444).
• Primary Accessory: Country‑specific IEC power cable.
• Secondary Items: Microfiber cleaning cloth; USB flash drive with Windows driver and PDF manual.
• Documentation: Quick guide and safety guide; online support and firmware updater available.

---

Technical Specifications

Specification	Value	Notes
Product Type	Wired desktop headphone amplifier with integrated DAC	Line‑powered; no wireless radios.
DAC Architecture	ESS SABRE32	Supports PCM up to 32‑bit/384 kHz; DSD up to DSD256 (12.3 MHz).
Digital Inputs	USB‑B, optical (Toslink), coaxial (S/PDIF)	High‑res playback; DSD indicator on front panel.
Analog Inputs	1× RCA (unbalanced), 1× XLR‑3 L/R (balanced)	RCA input has adjustable gain steps (14–46 dB).
Headphone Outputs	1× XLR‑4 balanced; 2× 4.4 mm Pentaconn balanced; 1× XLR‑3/6.35 mm combo unbalanced	Drive one or multiple headphones simultaneously.
Line/Pre Outputs	2× XLR‑3 (balanced)	Use as a high‑quality preamp for powered speakers/amps.
Frequency Response	<10 Hz to >100 kHz	Preserves extension and air.
THD+N	<0.001%	Clean, low‑distortion amplification.
Dynamic Range	>115 dB (A‑weighted, 600 Ω)	Black background with high‑impedance headphones.
Gain	Balanced in: 16 dB; RCA in: 14/22/30/38/46 dB	Back‑panel selector optimizes system matching.
Max Output (reference)	≈480 mW @ 600 Ω (XLR‑4)	Manufacturer spec; 17 Vrms headroom translates to confident drive for high‑impedance cans.
Dimensions	224 × 44 × 306 mm	Low profile, full‑depth chassis.
Weight	2250 g	Substantial build with internal PSU.

---

Professional Recognition

• Reviews: “Smooth, sophisticated…a pleasure to use,” with expansive staging and fluid dynamics; What Hi‑Fi also praises its connectivity and preamp utility.
• Bench tests: Independent measurements show competent objective performance with a DAC/amp SINAD around 108 dB, aligning with its low‑distortion claim.
• Community feedback: Early Head‑Fi impressions highlight “near flawless transparency” and excellent build, particularly when paired with HD 800 S.
• Heritage: Conceived and manufactured in Germany, the HDV 820 continues Sennheiser’s audiophile lineage and is styled to match the HD 800 S.
• Innovation: Dual 4.4 mm Pentaconn balanced outputs implement the JEITA standard for low contact resistance and distortion‑free signal transfer.

---

The Bottom Line

If you want a single, elegant component that can be your high‑resolution DAC, balanced headphone amp, and studio‑quiet preamp, the HDV 820 delivers with authority. Its SABRE32 conversion, balanced topology, and thoughtful I/O make it an easy fit in serious listening rooms, while the front‑panel output array accommodates everything from classic 6.35 mm plugs to modern 4.4 mm balanced cables. Backed by Sennheiser’s engineering and built in Germany, it’s a confident, future‑ready hub for reference headphones.

---

Notes for system matching

• Best with medium‑to‑high impedance dynamic headphones (e.g., 150–600 Ω) where its very low noise floor and high voltage swing shine. Balanced connections further improve headroom and channel separation.
• macOS requires no driver; Windows users should install the included driver from the USB flash drive for bit‑perfect playback at the highest PCM/DSD rates.

Ready to hear what your headphones can really do? The HDV 820 makes the case in the first bar.
